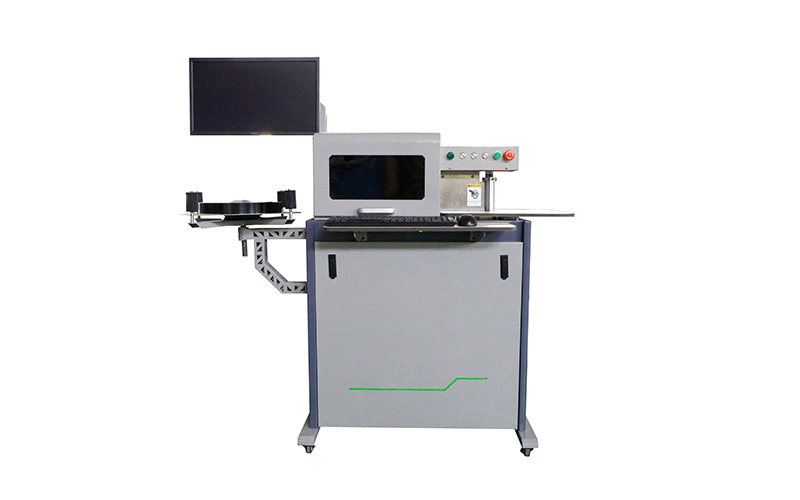

Q2 Automatic CNC Channel Letter Bender
The Q2 automatic channel letter bending machine is designed for aluminum flat strip processing. Automatic feeding, slotting and bending are completed in one continuous pass — just import your PLT / DXF / AI files and start production. With a compact body and standard 220V power, it fits any workshop or sign shop.
[Technical Specifications]
| Item | Specification |
|---|---|
| Working Principle | Automatic Feeding · Automatic Grooving · Automatic Bending |
| Processing Material | Aluminum Flat Sheet |
| Bending Radius | ≥ 3.5 mm |
| Material Height | ≤ 100 mm |
| Material Thickness | 0.3 – 0.8 mm |
| File Format | PLT / DXF / AI |
| Power | 500 W |
| Rated Voltage | 220V, 50/60Hz |
| Working Air Pressure | 0.3 – 0.8 MPa |
| Machine Dimensions | 1500 × 500 × 1500 mm |
| Machine Weight | 110 kg |
[Applications]
Ideal for channel letters, rim letters, mini letters and aluminum letter production — perfect for sign shops, signage factories and advertising companies.
[How It Works]
- Export PLT / DXF / AI files from your design software
- Import via USB or network port
- Load the aluminum strip
- One-click start: feeding, slotting and bending run automatically
[Why NEWIN]
· 10 years of CNC machine manufacturing, exported to 50+ countries
· 72-hour continuous testing before shipment
· English / Russian remote technical support
· Voltage and configuration customizable
[Delivery & After-sales]
Standard model ships in 7–15 days; export plywood packing; sea / rail / express available; operation video included; 12-month warranty, lifetime technical support.
